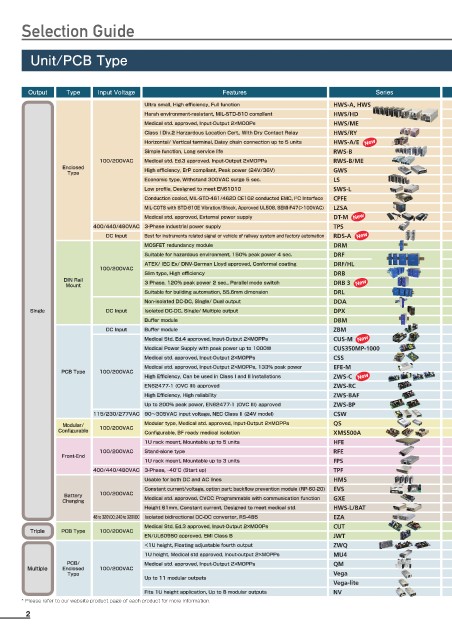

Selection Guide

Unit/PCB Type

Output Power (W)
Output Type Input Voltage Features Series 10 15 20 25 30 35 40 50 60 65 70 75 80 100 110 120 130 150 165 175 180 200 225 240 250 280 300 350 400 450 480 500 550 600 650 700 800 900 960 1K 1.2K 1.5K 1.6K 1.8K 2K 2.5K 3K 4K 11K 45K Warranty Page
(Year)
Ultra small, High efficiency, Full function HWS-A, HWS ● ● ● ● ● ● ● ● ● ● ● ● 5 13
Harsh environment-resistant, MIL-STD-810 compliant HWS/HD ● ● ● ● ● ● ● ● ● 5 Web
Medical std. approved, Input-Output 2×MOOPs HWS/ME ● ● ● ● ● ● ● ● 5 Web
Class I Div.2 Harzardous Location Cert., With Dry Contact Relay HWS/RY ● ● ● ● 5 13
Horizontal/ Vertical terminal, Daisy chain connection up to 5 units HWS-A/E New ● ● ● 5 13
Simple function, Long service life RWS-B ● ● ● ● ● ● ● 5 14
100/200VAC Medical std. Ed.3 approved, Input-Output 2xMOPPs RWS-B/ME ● ● 5 14
Enclosed High efficiency, ErP compliant, Peak power (24V/36V) GWS ● ● 5 15
Type
Economic type, Withstand 300VAC surge 5 sec. LS ● ● ● ● ● ● ● 3 15
Low profile, Designed to meet EN61010 SWS-L ● ● 3 Web
Conduction cooled, MIL-STD-461/462D CE102 conducted EMC, I 2 C Interface CPFE ● 2 29
MIL-COTS with STD-810E Vibration/Shock, Approved UL508, SEMI-F47(>100VAC) LZSA ● ● ● 5 Web
Medical std. approved, External power supply DT-M New ● ● ● ● ● ● ● 2 26
400/440/480VAC 3-Phase industrial power supply TPS ● ● 3 21
DC Input Best for instruments related signal or vehicle of railway system and factory automation RDS-A New ● ● ● ● 5 20
MOSFET redundancy module DRM 5 16
Suitable for hazardous environment, 150% peak power 4 sec. DRF ● ● ● ● 5 16
ATEX/ IEC Ex/ DNV-German Lloyd approved, Conformal coating DRF/HL ● ● ● 5 Web
100/200VAC
Slim type, High efficiency DRB ● ● ● ● ● ● ● 3 17
DIN Rail 3 Phase, 120% peak power 2 sec., Parallel mode switch DRB 3 New ● ● 3 17
Mount
Suitable for building automation, 55.6mm dimension DRL ● ● ● ● 3 18
Non-isolated DC-DC, Single/ Dual output DDA ● ● ● 3 18
Single DC Input Isolated DC-DC, Single/ Multiple output DPX ● ● ● ● ● 2 Web
Buffer module DBM ● 5 19
DC Input Buffer module ZBM ● ● ● 5 19
Medical Std. Ed.4 approved, Input-Output 2×MOPPs CUS-M New ● ● ● ● ● ● ● ● ● ● ● 3 23
Medical Power Supply with peak power up to 1000W CUS350MP-1000 ● 5 23
Medical std. approved, Input-Output 2×MOPPs CSS ● ● ● 2 Web
Medical std. approved, Input-Output 2×MOPPs, 133% peak power EFE-M ● ● 5 Web
PCB Type 100/200VAC
High Efficiency, Can be used in Class I and II installations ZWS-C New ● ● ● 5 24
EN62477-1 (OVC III) approved ZWS-RC ● 5 25
High Efficiency, High reliability ZWS-BAF ● ● ● ● ● 5 Web
Up to 200% peak power, EN62477-1 (OVC III) approved ZWS-BP ● ● 5 25
115/230/277VAC 90～305VAC input voltage, NEC Class II (24V model) CSW ● 3 25
Modular/ 100/200VAC Modular type, Medical std. approved, Input-Output 2×MOPPs QS ● ● ● 7 30
Configurable Configurable, BF ready medical isolation XMS500A ● 5 28
1U rack mount, Mountable up to 5 units HFE ● ● 3 22
100/200VAC Stand-alone type RFE ● ● 2 22
Front-End
1U rack mount, Mountable up to 3 units FPS ● 3 Web
400/440/480VAC 3-Phase, –40°C (Start up) TPF ● 3 21
Usable for both DC and AC lines HMS ● ● ● ● 5 19
Constant current/voltage, option part: backflow prevention module (RP-60-20) EVS ● ● 5 14
Battery 100/200VAC ●
Charging Medical std. approved, CVCC Programmable with communication function GXE 5 37
Height 61mm, Constant current, Designed to meet medical std. HWS-L/BAT ● ● 5 Web
48 to 320VDC; 240 to 320VDC Isolated bidirectional DC-DC converter, RS-485 EZA ● ● 5 20
Medical Std. Ed.3 approved, Input-Output 2×MOOPs CUT ● ● 3 24
Triple PCB Type 100/200VAC
EN/UL60950 approved, EMI Class B JWT ● ● 3 Web
<1U height, Floating adjustable fourth output ZWQ ● ● 1 26
1U height, Medical std approved, Inout-output 2×MOPPs MU4 ● ● 7 27
PCB/ Medical std. approved, Input-Output 2×MOPPs QM ● ● ● ● ● ● 7 31
Multiple Enclosed 100/200VAC
Type Vega ● ● ● 3 Web
Up to 11 modular outputs
Vega-lite ● ● 3 Web
Fits 1U height application, Up to 8 modular outputs NV ● ● ● ● ● 3 Web
* Please refer to our website product page of each product for more information.
