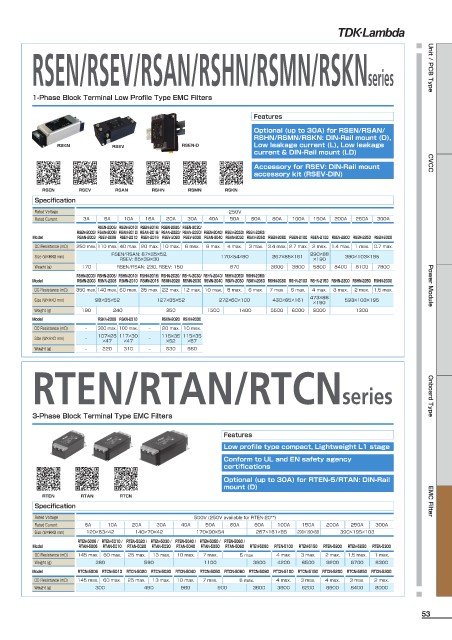

Page 53 - TDK Lambda - Products Selection Guide

RSEN/RSEV/RSAN/RSHN/RSMN/RSKNseries Unit / PCB Type

1-Phase Block Terminal Low Profile Type EMC Filters

Features
Optional (up to 30A) for RSEN/RSAN/
RSHN/RSMN/RSKN: DIN-Rail mount (D),
RSKN RSEV RSEN-D Low leakage current (L), Low leakage
current & DIN-Rail mount (LD)
Accessory for RSEV: DIN-Rail mount CVCC
accessory kit (RSEV-DIN)

RSEN RSEV RSAN RSHN RSMN RSKN
Specification

Rated Voltage 250V
Rated Current 3A 6A 10A 16A 20A 30A 40A 50A 60A 80A 100A 150A 200A 250A 300A
RSEN-2006/ RSEN-2010/ RSEN-2016/ RSEN-2020/ RSEN-2030/
RSEN-2003/ RSAN-2006/ RSAN-2010/ RSAN-2016/ RSAN-2020/ RSAN-2030/ RSEN-2040/ RSEN-2050/ RSEN-2060/
Model RSAN-2003 RSEV-2006 RSEV-2010 RSEV-2016 RSEV-2020 RSEV-2030 RSAN-2040 RSAN-2050 RSAN-2060 RSEN-2080 RSEN-2100 RSEN-2150 RSEN-2200 RSEN-2250 RSEN-2300
DC Resistance (mΩ) 250 max. 110 max. 40 max. 20 max. 10 max. 6 max. 6 max. 4 max. 3 max. 3.4 max. 2.7 max. 2 max. 1.4 max. 1 max. 0.7 max.
Size (W×H×D mm) RSEN/RSAN: 87×35×52, 170×54×90 267×85×161 290×88 390×103×195
RSEV: 85×39×30
×190
Weight (g) 170 RSEN/RSAN: 230, RSEV: 150 870 3600 3800 5800 8400 8100 7800
RSHN-2003/ RSHN-2006/ RSHN-2010/ RSHN-2016/ RSHN-2020/ RSHN-2030/ RSHN-2040/ RSHN-2050/ RSHN-2060/
Model RSMN-2003 RSMN-2006 RSMN-2010 RSMN-2016 RSMN-2020 RSMN-2030 RSMN-2040 RSMN-2050 RSMN-2060 RSHN-2080 RSHN-2100 RSHN-2150 RSHN-2200 RSHN-2250 RSHN-2300
DC Resistance (mΩ) 350 max. 140 max. 60 max. 35 max. 22 max. 12 max. 10 max. 8 max. 6 max. 7 max. 6 max. 4 max. 3 max. 2 max. 1.5 max. Power Module
Size (W×H×D mm) 98×35×52 127×35×52 272×60×100 430×85×161 473×88 593×103×195
×190
Weight (g) 190 240 350 1500 1400 5500 6000 9000 1300
Model RSKN-2006 RSKN-2010 RSKN-2020 RSKN-2030
DC Resistance (mΩ) – 300 max. 100 max. – 20 max. 10 max.
Size (W×H×D mm) – 107×26 117×30 – 115×35 115×35
×67
×52
×47
×47
Weight (g) – 220 310 – 530 660

RTEN/RTAN/RTCNseries Onboard Type

3-Phase Block Terminal Type EMC Filters

Features
Low profile type compact, Lightweight L1 stage
Conform to UL and EN safety agency
certifications
Optional (up to 30A) for RTEN-5/RTAN: DIN-Rail
mount (D)
RTEN RTAN RTCN
Specification EMC Filter
Rated Voltage 500V (250V available for RTEN-20**)
Rated Current 6A 10A 20A 30A 40A 50A 60A 80A 100A 150A 200A 250A 300A
Size (W×H×D mm) 120×63×42 140×70×42 170×90×54 267×161×85 290×190×88 390×195×103
RTEN-5006 / RTEN-5010 / RTEN-5020 / RTEN-5030 / RTEN-5040 / RTEN-5050 / RTEN-5060 /
Model RTAN-5006 RTAN-5010 RTAN-5020 RTAN-5030 RTAN-5040 RTAN-5050 RTAN-5060 RTEN-5080 RTEN-5100 RTEN-5150 RTEN-5200 RTEN-5250 RTEN-5300
DC Resistance (mΩ) 145 max. 60 max. 25 max. 13 max. 10 max. 7 max. 5 max. 4 max. 3 max. 2 max. 1.5 max. 1 max.
Weight (g) 360 560 1100 3900 4200 6500 9200 8700 8300
Model RTCN-5006 RTCN-5010 RTCN-5020 RTCN-5030 RTCN-5040 RTCN-5050 RTCN-5060 RTCN-5080 RTCN-5100 RTCN-5150 RTCN-5200 RTCN-5250 RTCN-5300
DC Resistance (mΩ) 145 max. 60 max. 25 max. 13 max. 10 max. 7 max. 5 max. 4 max. 3 max. 4 max. 3 max. 2 max.
Weight (g) 300 490 960 900 3600 3900 6200 8900 8400 8000
