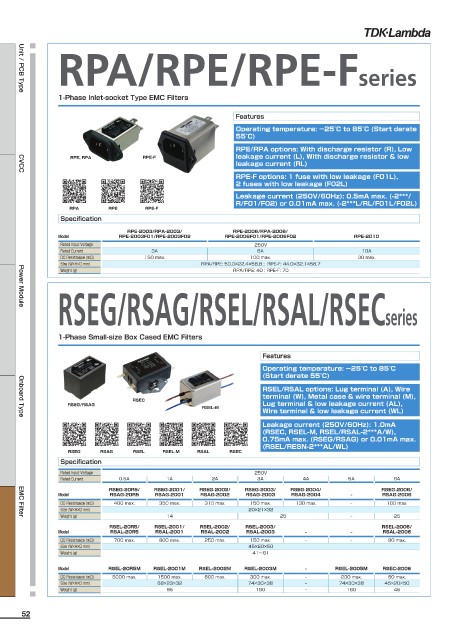

Page 52 - TDK Lambda - Products Selection Guide

RPA/RPE/RPE-Fseries

Unit / PCB Type
1-Phase Inlet-socket Type EMC Filters

Features
Operating temperature: －25°C to 85°C (Start derate
55°C)
RPE/RPA options: With discharge resistor (R), Low
RPE, RPA RPE-F leakage current (L), With discharge resistor & low
leakage current (RL)
RPE-F options: 1 fuse with low leakage (F01L),
CVCC
2 fuses with low leakage (F02L)
Leakage current (250V/60Hz): 0.5mA max. (-2***/
R/F01/F02) or 0.01mA max. (-2***L/RL/F01L/F02L)
RPA RPE RPE-F
Specification

RPE-2003/RPA-2003/ RPE-2006/RPA-2006/
Model RPE-2003F01/RPE-2003F02 RPE-2006F01/RPE-2006F02 RPE-2010
Rated Input Voltage 250V
Rated Current 3A 6A 10A
DC Resistance (mΩ) 150 max. 100 max. 30 max.
Size (W×H×D mm) RPA/RPE: 50.0×22.4×58.8 ; RPE-F: 44.0×32.1×58.7
Weight (g) RPA/RPE: 40 ; RPE-F: 70

RSEG/RSAG/RSEL/RSAL/RSECseries
Power Module

1-Phase Small-size Box Cased EMC Filters

Features
Operating temperature: －25°C to 85°C
(Start derate 55°C)
RSEL/RSAL options: Lug terminal (A), Wire
terminal (W), Metal case & wire terminal (M),
RSEC
RSEG/RSAG Lug terminal & low leakage current (AL),
RSEL-M
Wire terminal & low leakage current (WL)
Onboard Type
Leakage current (250V/60Hz): 1.0mA
(RSEC, RSEL-M, RSEL/RSAL-2***A/W),
0.75mA max. (RSEG/RSAG) or 0.01mA max.
(RSEL/RESN-2***AL/WL)
RSEG RSAG RSEL RSEL-M RSAL RSEC
Specification
Rated Input Voltage 250V
Rated Current 0.5A 1A 2A 3A 4A 5A 6A
RSEG-20R5/ RSEG-2001/ RSEG-2002/ RSEG-2003/ RSEG-2004/ RSEG-2006/
Model RSAG-20R5 RSAG-2001 RSAG-2002 RSAG-2003 RSAG-2004 – RSAG-2006
DC Resistance (mΩ) 400 max. 350 max. 310 max. 150 max. 130 max. – 100 max.
Size (W×H×D mm) 20×21×32
Weight (g) 14 25 – 25
EMC Filter
RSEL-20R5/ RSEL-2001/ RSEL-2002/ RSEL-2003/ RSEL-2006/
Model RSAL-20R5 RSAL-2001 RSAL-2002 RSAL-2003 – – RSAL-2006
DC Resistance (mΩ) 700 max. 600 max. 250 max. 150 max. – – 80 max.
Size (W×H×D mm) 45×20×50
Weight (g) 41〜61
Model RSEL-20R5M RSEL-2001M RSEL-2002M RSEL-2003M – RSEL-2005M RSEC-2006
DC Resistance (mΩ) 5000 max. 1500 max. 600 max. 300 max. – 200 max. 60 max.
Size (W×H×D mm) 68×23×32 74×30×38 – 74×30×38 45×20×50
Weight (g) 95 160 – 160 45
