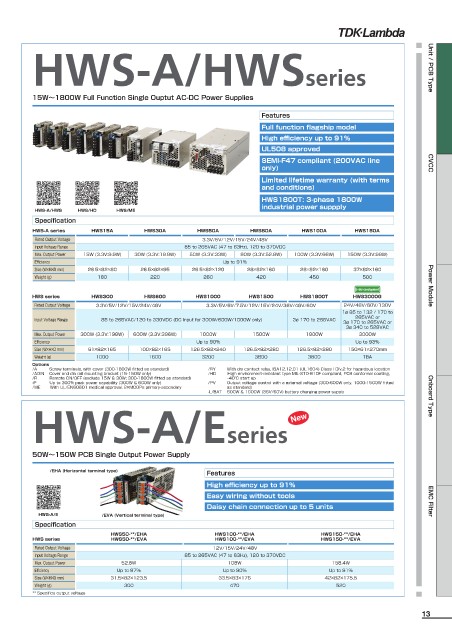

HWS-A/HWSseries Unit / PCB Type

15W〜1800W Full Function Single Ouptut AC-DC Power Supplies

Features
Full function flagship model
High efficiency up to 91%
UL508 approved
SEMI-F47 compliant (200VAC line
only) CVCC
Limited lifetime warranty (with terms
and conditions)
HWS1800T: 3-phase 1800W
industrial power suppply
HWS-A/HWS HWS/HD HWS/ME
Specification
HWS-A series HWS15A HWS30A HWS50A HWS80A HWS100A HWS150A
Rated Output Voltage 3.3V/5V/12V/15V/24V/48V
Input Voltage Range 85 to 265VAC (47 to 63Hz), 120 to 370VDC
Max. Output Power 15W (3.3V:9.9W) 30W (3.3V:19.8W) 50W (3.3V:33W) 80W (3.3V:52.8W) 100W (3.3V:66W) 150W (3.3V:99W)
Efficiency Up to 91%
Size (W×H×D mm) 26.5×82×80 26.5×82×95 26.5×82×120 28×82×160 28×82×160 37×82×160
Weight (g) 180 220 280 420 450 500
Under development Power Module
HWS series HWS300 HWS600 HWS1000 HWS1500 HWS1800T HWS3000G
Rated Output Voltage 3.3V/5V/12V/15V/24V/48V 3.3V/5V/6V/7.5V/12V/15V/24V/36V/48V/60V 24V/48V/60V/130V
1ø 85 to 132 / 170 to
265VAC or
Input Voltage Range 85 to 265VAC/120 to 330VDC (DC Input for 300W/600W/1000W only) 3ø 170 to 265VAC 3ø 170 to 265VAC or
3ø 340 to 528VAC
Max. Output Power 300W (3.3V:198W) 600W (3.3V:396W) 1000W 1500W 1800W 3000W
Efficiency Up to 90% Up to 93%
Size (W×H×D mm) 61×82×165 100×82×165 126.5×82×240 126.5×82×280 126.5×82×280 150×61×270mm
Weight (g) 1000 1600 3200 3800 3800 TBA
Options
/A Screw terminals, with cover (300-1800W fitted as standard) /RY With dry contact relay, ISA12.12.01 (UL1604) Class I Div.2 for hazardous location
/ADIN Cover and din rail mounting bracket (15-150W only) /HD High environment-resistant type MIL-STD-810F compliant, PCB conformal coating,
/R Remote ON/OFF (exclude 15W & 30W; 300-1800W fitted as standard) –40°C start up
-P Up to 300% peak power capability (300W & 600W only) /PV Output voltage control with a external voltage (300-600W only, 1000-1500W fitted
/ME With UL/EN60601 medical approval, 2×MOOPs primary-secondary as standard)
-L/BAT 600W & 1000W (36V/60V) battery charging power supply Onboard Type
New
HWS-A/Eseries

50W〜150W PCB Single Output Power Supply

/EHA (Horizontal terminal type) Features
High efficiency up to 91%
Easy wiring without tools
Daisy chain connection up to 5 units EMC Filter
HWS-A/E /EVA (Vertical terminal type)
Specification
HWS50-**/EHA HWS100-**/EHA HWS150-**/EHA
HWS series HWS50-**/EVA HWS100-**/EVA HWS150-**/EVA
Rated Output Voltage 12V/15V/24V/48V
Input Voltage Range 85 to 265VAC (47 to 63Hz), 120 to 370VDC
Max. Output Power 52.8W 108W 158.4W
Efficiency Up to 87% Up to 90% Up to 91%
Size (W×H×D mm) 31.5×82×123.5 33.5×83×176 42×82×175.5
Weight (g) 300 470 520
** Specifics output voltage
