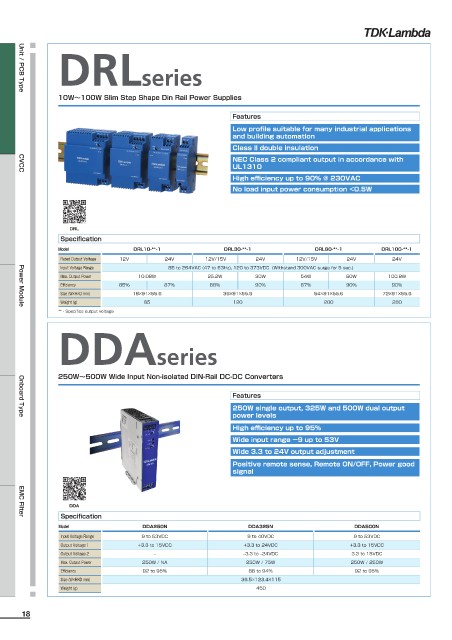

Page 18 - TDK Lambda - Products Selection Guide

DRLseries

Unit / PCB Type
10W〜100W Slim Step Shape Din Rail Power Supplies

Features
Low profile suitable for many industrial applications
and building automation
Class II double insulation
NEC Class 2 compliant output in accordance with
UL1310
CVCC
High efficiency up to 90% @ 230VAC
No load input power consumption <0.5W

DRL
Specification
Model DRL10-**-1 DRL30-**-1 DRL60-**-1 DRL100-**-1
Rated Output Voltage 12V 24V 12V/15V 24V 12V/15V 24V 24V
Input Voltage Range 85 to 264VAC (47 to 63Hz), 120 to 373VDC (Withstand 300VAC surge for 5 sec.)
Max. Output Power 10.08W 25.2W 30W 54W 60W 100.8W
Efficiency 85% 87% 88% 90% 87% 90% 90%
Size (W×H×D mm) 18×91×55.6 36×91×55.6 54×91×55.6 72×91×55.6
Weight (g) 65 120 200 280
Power Module
** - Specifics output voltage

DDAseries

250W〜500W Wide Input Non-isolated DIN-Rail DC-DC Converters

Features
250W single output, 325W and 500W dual output
power levels
Onboard Type
High efficiency up to 95%
Wide input range －9 up to 53V
Wide 3.3 to 24V output adjustment
Positive remote sense, Remote ON/OFF, Power good
signal

DDA
Specification
EMC Filter
Model DDA250N DDA325N DDA500N
Input Voltage Range 9 to 53VDC 9 to 40VDC 9 to 53VDC
Output Voltage 1 +3.3 to 15VDC +3.3 to 24VDC +3.3 to 15VDC
Output Voltage 2 – –3.3 to –24VDC 3.3 to 15VDC
Max. Output Power 250W / NA 250W / 75W 250W / 250W
Efficiency 92 to 95% 88 to 94% 92 to 95%
Size (W×H×D mm) 36.5×123.4×115
Weight (g) 450
