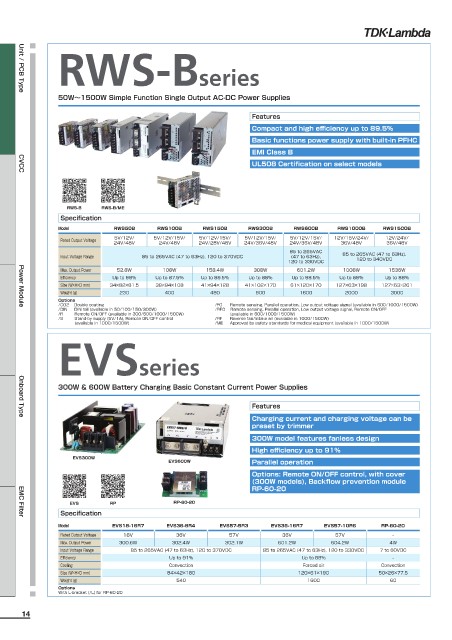

Page 14 - TDK Lambda - Products Selection Guide

RWS-Bseries

Unit / PCB Type
50W〜1500W Simple Function Single Output AC-DC Power Supplies

Features
Compact and high efficiency up to 89.5%
Basic functions power supply with built-in PFHC
EMI Class B
UL508 Certification on select models
CVCC

RWS-B RWS-B/ME
Specification
Model RWS50B RWS100B RWS150B RWS300B RWS600B RWS1000B RWS1500B
Rated Output Voltage 5V/12V/ 5V/12V/15V/ 5V/12V/15V/ 5V/12V/15V/ 5V/12V/15V/ 12V/15V/24V/ 12V/24V/
24V/48V 24V/48V 24V/28V/48V 24V/36V/48V 24V/36V/48V 36V/48V 36V/48V
85 to 265VAC
Input Voltage Range 85 to 265VAC (47 to 63Hz), 120 to 370VDC (47 to 63Hz), 85 to 265VAC (47 to 63Hz),
120 to 340VDC
120 to 330VDC
Max. Output Power 52.8W 108W 158.4W 308W 601.2W 1008W 1536W
Efficiency Up to 88% Up to 87.5% Up to 89.5% Up to 88% Up to 88.5% Up to 88% Up to 88%
Size (W×H×D mm) 34×82×81.5 39×94×108 41×94×128 41×102×170 61×120×170 127×63×198 127×63×261
Weight (g) 230 400 480 900 1600 2000 3000
Options
/CO2 Double coating /FO Remote sensing, Parallel operation, Low output voltage signal (available in 600/1000/1500W)
/DIN DIN rail (available in 50/100/150/300W) /RFO Remote sensing, Parallel operation, Low output voltage signal, Remote ON/OFF
Power Module
/R Remote ON/OFF (available in 300/600/1000/1500W) (available in 600/1000/1500W)
/S Stand-by supply (5V/1A), Remote ON/OFF control /RF Reverse fan/Intake air (available in 1000/1500W)
(available in 1000/1500W) /ME Approved by safety standards for medical equipment (available in 1000/1500W)

EVSseries

300W & 600W Battery Charging Basic Constant Current Power Supplies

Features
Charging current and charging voltage can be
Onboard Type
preset by trimmer
300W model features fanless design
High efficiency up to 91%
EVS300W
EVS600W Parallel operation
Options: Remote ON/OFF control, with cover
(300W models), Backflow prevention module
RP-60-20

EVS RP RP-60-20
Specification
EMC Filter
Model EVS18-16R7 EVS36-8R4 EVS57-5R3 EVS36-16R7 EVS57-10R6 RP-60-20
Rated Output Voltage 18V 36V 57V 36V 57V –
Max. Output Power 300.6W 302.4W 302.1W 601.2W 604.2W 4W
Input Voltage Range 85 to 265VAC (47 to 63Hz), 120 to 370VDC 85 to 265VAC (47 to 63Hz), 120 to 330VDC 7 to 60VDC
Efficiency Up to 91% Up to 88% –
Cooling Convection Forced air Convection
Size (W×H×D mm) 84×42×180 120×61×190 50×26×77.5
Weight (g) 540 1600 60
Options
With L-bracket (/L) for RP-60-20
