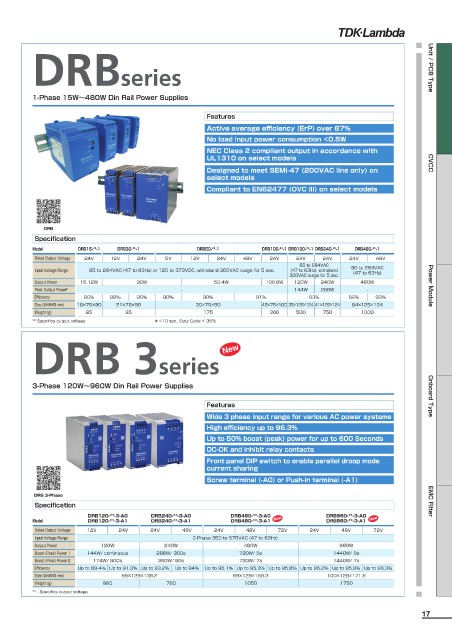

Page 17 - TDK Lambda - Products Selection Guide

DRBseries Unit / PCB Type

1-Phase 15W〜480W Din Rail Power Supplies

Features
Active average efficiency (ErP) over 87%
No load input power consumption <0.5W
NEC Class 2 compliant output in accordance with
UL1310 on select models
Designed to meet SEMI-47 (200VAC line only) on CVCC
select models
Compliant to EN62477 (OVC III) on select models

DRB
Specification
Model DRB15-**-1 DRB30-**-1 DRB50-**-1 DRB100-**-1 DRB120-**-1 DRB240-**-1 DRB480-**-1
Rated Output Voltage 24V 12V 24V 5V 12V 24V 48V 24V 24V 24V 24V 48V
85 to 264VAC
Input Voltage Range 85 to 264VAC (47 to 63Hz) or 120 to 373VDC, withstand 300VAC surge for 5 sec. (47 to 63Hz), withstand 90 to 264VAC
(47 to 63Hz)
300VAC surge for 5 sec.
Output Power 15.12W 30W 50.4W 100.8W 120W 240W 480W
Peak Output Power # – 144W 288W – Power Module
Efficiency 90% 88% 90% 80% 90% 91% 93% 92% 93%
Size (W×H×D mm) 18×75×90 21×75×90 30×75×90 45×75×100 35×125×124 41×125×124 84×125×124
Weight (g) 85 95 175 300 500 750 1000
** Specifics output voltage # <10 sec., Duty Cycle < 35%

New
DRB 3series

3-Phase 120W〜960W Din Rail Power Supplies

Features Onboard Type
Wide 3 phase input range for various AC power systems
High efficiency up to 96.3%
Up to 50% boost (peak) power for up to 600 Seconds
DC-OK and inhibit relay contacts
Front panel DIP switch to enable parallel droop mode
current sharing
Screw terminal (-A0) or Push-in terminal (-A1)

DRB 3-Phase
Specification EMC Filter
DRB120-**-3-A0 DRB240-**-3-A0 DRB480-**-3-A0 DRB960-**-3-A0
Model DRB120-**-3-A1 DRB240-**-3-A1 DRB480-**-3-A1 New DRB960-**-3-A1 New
Rated Output Voltage 12V 24V 24V 48V 24V 48V 72V 24V 48V 72V
Input Voltage Range 3-Phase 350 to 575VAC (47 to 63Hz)
Output Power 120W 240W 480W 960W
Boost (Peak) Power 1 144W/ continuous 288W/ 300s 720W/ 5s 1440W/ 5s
Boost (Peak) Power 2 174W/ 600s 360W/ 60s 720W/ 7s 1440W/ 7s
Efficiency Up to 89.4% Up to 91.3% Up to 93.2% Up to 94% Up to 95.1% Up to 95.3% Up to 95.8% Up to 95.2% Up to 95.9% Up to 96.3%
Size (W×H×D mm) 55×129×138.2 69×129×159.3 100×129×171.9
Weight (g) 660 780 1050 1750
** - Specifics output voltage
