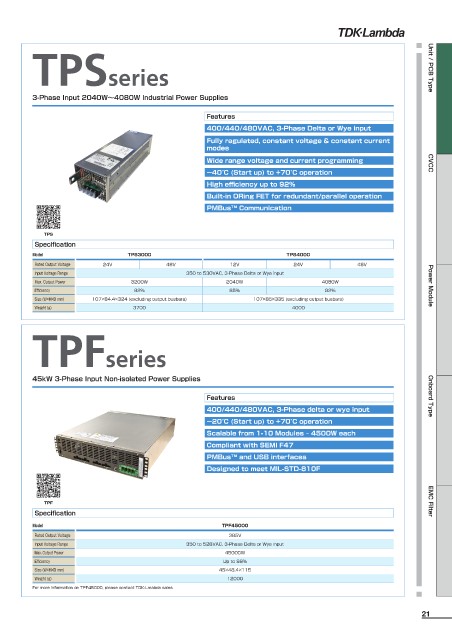

Page 21 - TDK Lambda - Products Selection Guide

TPSseries Unit / PCB Type

3-Phase Input 2040W〜4080W Industrial Power Supplies

Features
400/440/480VAC, 3-Phase Delta or Wye input
Fully regulated, constant voltage & constant current
modes
Wide range voltage and current programming CVCC
－40°C (Start up) to +70°C operation
High efficiency up to 92%
Built-in ORing FET for redundant/parallel operation
PMBus™ Communication

TPS
Specification
Model TPS3000 TPS4000
Rated Output Voltage 24V 48V 12V 24V 48V
Input Voltage Range 350 to 530VAC, 3-Phase Delta or Wye input
Max. Output Power 3200W 2040W 4080W
Efficiency 92% 85% 92% Power Module
Size (W×H×D mm) 107×84.4×324 (excluding output busbars) 107×85×335 (excluding output busbars)
Weight (g) 3700 4000

TPFseries

45kW 3-Phase Input Non-isolated Power Supplies

Features Onboard Type
400/440/480VAC, 3-Phase delta or wye input
－20°C (Start up) to +70°C operation
Scalable from 1-10 Modules – 4500W each
Compliant with SEMI F47
PMBus™ and USB interfaces
Designed to meet MIL-STD-810F

TPF EMC Filter
Specification
Model TPF45000
Rated Output Voltage 385V
Input Voltage Range 350 to 528VAC, 3-Phase Delta or Wye input
Max. Output Power 45000W
Efficiency Up to 98%
Size (W×H×D mm) 45×48.4×115
Weight (g) 12000
For more information on TPF45000, please contact TDK-Lmabda sales
