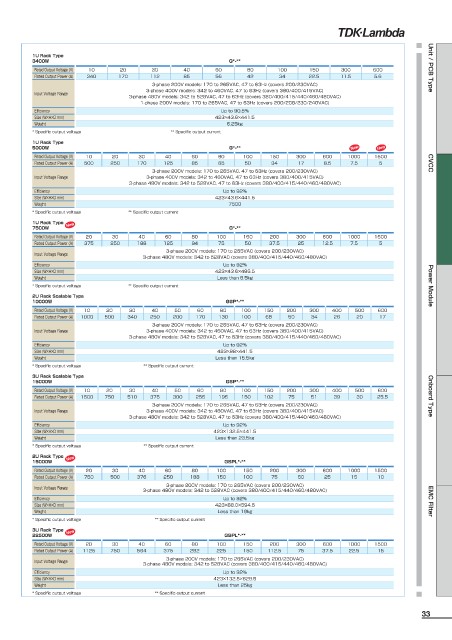

Page 33 - TDK Lambda - Products Selection Guide

1U Rack Type
3400W G*-**
Rated Output Voltage (V) 10 20 30 40 60 80 100 150 300 600 Unit / PCB Type
Rated Output Power (A) 340 170 112 85 56 42 34 22.5 11.5 5.6
3-phase 200V models: 170 to 265VAC, 47 to 63Hz (covers 200/230VAC)
3-phase 400V models: 342 to 460VAC, 47 to 63Hz (covers 380/400/415VAC)
Input Voltage Range
3-phase 480V models: 342 to 528VAC, 47 to 63Hz (covers 380/400/415/440/460/480VAC)
1-phase 200V models: 170 to 265VAC, 47 to 63Hz (covers 200/208/230/240VAC)
Efficiency Up to 90.5%
Size (W×H×D mm) 423×43.6×441.5
Weight 6.25kg
* Specific output voltage ** Specific output current
1U Rack Type
5000W G*-** New New
Rated Output Voltage (V) 10 20 30 40 60 80 100 150 300 600 1000 1500
Rated Output Power (A) 500 250 170 125 85 65 50 34 17 8.5 7.5 5 CVCC
3-phase 200V models: 170 to 265VAC, 47 to 63Hz (covers 200/230VAC)
Input Voltage Range 3-phase 400V models: 342 to 460VAC, 47 to 63Hz (covers 380/400/415VAC)
3-phase 480V models: 342 to 528VAC, 47 to 63Hz (covers 380/400/415/440/460/480VAC)
Efficiency Up to 92%
Size (W×H×D mm) 423×43.6×441.5
Weight 7500
* Specific output voltage ** Specific output current
1U Rack Type
7500W New G*-**
Rated Output Voltage (V) 20 30 40 60 80 100 150 200 300 600 1000 1500
Rated Output Power (A) 375 250 188 125 94 75 50 37.5 25 12.5 7.5 5
3-phase 200V models: 170 to 265VAC (covers 200/230VAC)
Input Voltage Range
3-phase 480V models: 342 to 528VAC (covers 380/400/415/440/460/480VAC)
Efficiency Up to 92%
Size (W×H×D mm) 423×43.6×486.5
Weight Less than 8.5kg
* Specific output voltage ** Specific output current Power Module
2U Rack Scalable Type
10000W GSP*-**
Rated Output Voltage (V) 10 20 30 40 50 60 80 100 150 200 300 400 500 600
Rated Output Power (A) 1000 500 340 250 200 170 130 100 68 50 34 26 20 17
3-phase 200V models: 170 to 265VAC, 47 to 63Hz (covers 200/230VAC)
Input Voltage Range 3-phase 400V models: 342 to 460VAC, 47 to 63Hz (covers 380/400/415VAC)
3-phase 480V models: 342 to 528VAC, 47 to 63Hz (covers 380/400/415/440/460/480VAC)
Efficiency Up to 92%
Size (W×H×D mm) 423×88×441.5
Weight Less than 15.5kg
* Specific output voltage ** Specific output current
3U Rack Scalable Type
15000W GSP*-**
Rated Output Voltage (V) 10 20 30 40 50 60 80 100 150 200 300 400 500 600
Rated Output Power (A) 1500 750 510 375 300 255 195 150 102 75 51 39 30 25.5 Onboard Type
3-phase 200V models: 170 to 265VAC, 47 to 63Hz (covers 200/230VAC)
Input Voltage Range 3-phase 400V models: 342 to 460VAC, 47 to 63Hz (covers 380/400/415VAC)
3-phase 480V models: 342 to 528VAC, 47 to 63Hz (covers 380/400/415/440/460/480VAC)
Efficiency Up to 92%
Size (W×H×D mm) 423×132.5×441.5
Weight Less than 23.5kg
* Specific output voltage ** Specific output current
2U Rack Type New
15000W GSPL*-**
Rated Output Voltage (V) 20 30 40 60 80 100 150 200 300 600 1000 1500
Rated Output Power (A) 750 500 376 250 188 150 100 75 50 25 15 10
3-phase 200V models: 170 to 265VAC (covers 200/230VAC)
Input Voltage Range 3-phase 480V models: 342 to 528VAC (covers 380/400/415/440/460/480VAC)
Efficiency Up to 92%
Size (W×H×D mm) 423×88.0×594.6 EMC Filter
Weight Less than 18kg
* Specific output voltage ** Specific output current
3U Rack Type New
22500W GSPL*-**
Rated Output Voltage (V) 20 30 40 60 80 100 150 200 300 600 1000 1500
Rated Output Power (A) 1125 750 564 375 282 225 150 112.5 75 37.5 22.5 15
3-phase 200V models: 170 to 265VAC (covers 200/230VAC)
Input Voltage Range 3-phase 480V models: 342 to 528VAC (covers 380/400/415/440/460/480VAC)
Efficiency Up to 92%
Size (W×H×D mm) 423×132.5×628.5
Weight Less than 25kg
* Specific output voltage ** Specific output current
