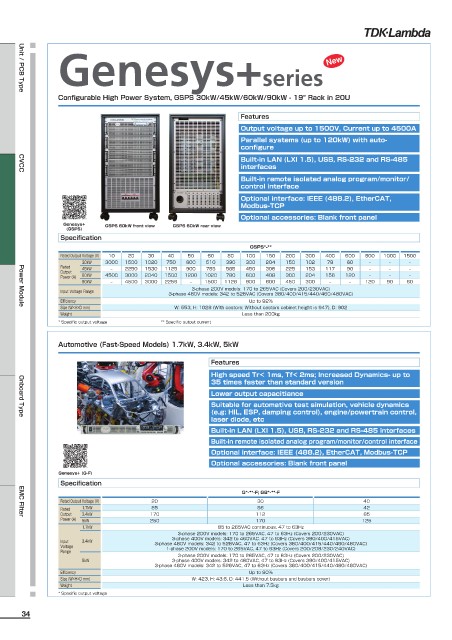

Genesys+series

Unit / PCB Type
Configurable High Power System, GSPS 30kW/45kW/60kW/90kW - 19" Rack in 20U

Features
Output voltage up to 1500V, Current up to 4500A
Parallel systems (up to 120kW) with auto-
configure
Built-in LAN (LXI 1.5), USB, RS-232 and RS-485
interfaces
CVCC
Built-in remote isolated analog program/monitor/
control interface
Optional interface: IEEE (488.2), EtherCAT,
Modbus-TCP
Optional accessories: Blank front panel
Genesys+ GSPS 60kW front view GSPS 60kW rear view
(GSPS)
Specification
GSPS*-**
Rated Output Voltage (V) 10 20 30 40 50 60 80 100 150 200 300 400 500 600 1000 1500
30kW 3000 1500 1020 750 600 510 390 300 204 150 102 78 60 – – –
Rated 45kW – 2250 1530 1125 900 765 585 450 306 225 153 117 90 – – –
Output
Power (A) 60kW 4500 3000 2040 1500 1200 1020 780 600 408 300 204 156 120 – – –
90kW – 4500 3000 2256 – 1500 1128 900 600 450 300 – – 120 90 60
3-phase 200V models: 170 to 265VAC (Covers 200/230VAC)
Input Voltage Range 3-phase 480V models: 342 to 528VAC (Covers 380/400/415/440/460/480VAC)
Efficiency Up to 92%
Size (W×H×D mm) W: 553, H: 1028 (With castors; Without castors cabinet height is 947), D: 902
Power Module
Weight Less than 200kg
* Specific output voltage ** Specific output current
Automotive (Fast-Speed Models) 1.7kW, 3.4kW, 5kW

Features
High speed Tr< 1ms, Tf< 2ms; Increased Dynamics- up to
35 times faster than standard version
Lower output capacitiance
Suitable for automative test simulation, vehicle dynamics
(e.g: HIL, ESP, damping control), engine/powertrain control,
laser diode, etc
Onboard Type
Built-in LAN (LXI 1.5), USB, RS-232 and RS-485 interfaces
Built-in remote isolated analog program/monitor/control interface
Optional interface: IEEE (488.2), EtherCAT, Modbus-TCP
Optional accessories: Blank front panel
Genesys+ (G-F)
Specification
G*-**-F; GB*-**-F
Rated Output Voltage (V) 20 30 40
Rated 1.7kW 85 56 42
Output 3.4kW 170 112 85
Power (A) 5kW 250 170 125
EMC Filter
1.7kW 85 to 265VAC continuous, 47 to 63Hz
3-phase 200V models: 170 to 265VAC, 47 to 63Hz (Covers 200/230VAC)
3-phase 400V models: 342 to 460VAC, 47 to 63Hz (Covers 380/400/415VAC)
Input 3.4kW 3-phase 480V models: 342 to 528VAC, 47 to 63Hz (Covers 380/400/415/440/460/480VAC)
Voltage 1-phase 200V models: 170 to 265VAC, 47 to 63Hz (Covers 200/208/230/240VAC)
Range
3-phase 200V models: 170 to 265VAC, 47 to 63Hz (Covers 200/230VAC)
5kW 3-phase 400V models: 342 to 460VAC, 47 to 63Hz (Covers 380/400/415VAC)
3-phase 480V models: 342 to 528VAC, 47 to 63Hz (Covers 380/400/415/440/460/480VAC)
Efficiency Up to 90%
Size (W×H×D mm) W: 423, H: 43.6, D: 441.5 (Without busbars and busbars cover)
Weight Less than 7.5kg
* Specific output voltage
