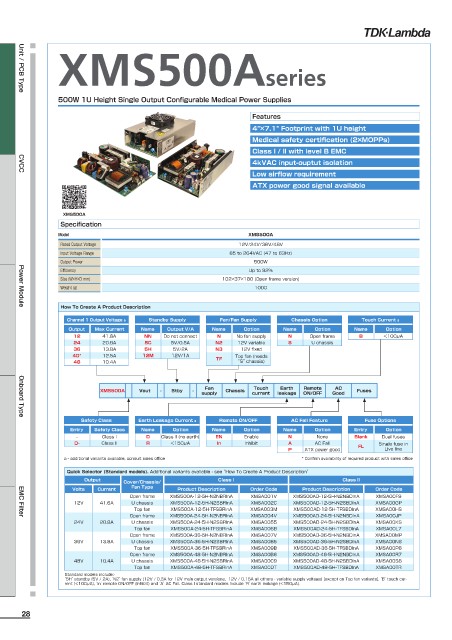

Page 28 - TDK Lambda - Products Selection Guide

XMS500Aseries

Unit / PCB Type
500W 1U Height Single Output Configurable Medical Power Supplies

Features
4"×7.1" Footprint with 1U height
Medical safety certification (2×MOPPs)
Class I / II with level B EMC
4kVAC input-ouptut isolation
Low airflow requirement
CVCC
ATX power good signal available

XMS500A
Specification
Model XMS500A
Rated Output Voltage 12V/24V/36V/48V
Input Voltage Range 85 to 264VAC (47 to 63Hz)
Output Power 500W
Efficiency Up to 92%
Size (W×H×D mm) 102×37×180 (Open frame version)
Weight (g) 1000

How To Create A Product Description
Power Module
Channel 1 Output Voltage a Standby Supply Fan/Fan Supply Chassis Option Touch Current a
Output Max Current Name Output V/A Name Option Name Option Name Option
12 41.6A NN Do not connect N No fan supply N Open frame B <100μA
24 20.8A 5C 5V/0.5A N2 12V variable S U chassis
36 13.8A 5H 5V/2A N3 12V fixed
40* 12.5A 12M 12V/1A TF Top fan (needs
48 10.4A “S” chassis)

Fan ▲ Touch Earth Remote AC
▲
▲
▲
▲
XMS500A Vout - Stby - supply Chassis current leakage ON/OFF Good Fuses
▲ ▲ ▲ ▲ ▲
Onboard Type
Safety Class Earth Leakage Current a Remote ON/OFF AC Fall Feature Fuse Options
Entry Safety Class Name Option Name Option Name Option Entry Option
– Class I D Class II (no earth) EN Enable N None Blank Dual fuses
D- Class II R <150μA In Inhibit A AC Fall FL Single fuse in
P ATX power good Live line
a - additional variants available, consult sales office * Confirm availability of required product with sales office

Quick Selector (Standard models). Additional variants available - see “How To Create A Product Description”
Output Cover/Chassis/ Class I Class II
Volts Current Fan Type Product Description Order Code Product Description Order Code
Open frame XMS500A-12-5H-N2NBRInA XMSA001V XMS500AD-12-5H-N2NBDInA XMSA00F9
12V 41.6A U chassis XMS500A-12-5H-N2SBRInA XMSA002C XMS500AD-12-5H-N2SBDInA XMSA00GP
Top fan XMS500A-12-5H-TFSBRInA XMSA003M XMS500AD-12-5H-TFSBDInA XMSA00HS
Open frame XMS500A-24-5H-N2NBRInA XMSA004V XMS500AD-24-5H-N2NBDInA XMSA00JP
EMC Filter
24V 20.8A U chassis XMS500A-24-5H-N2SBRInA XMSA0055 XMS500AD-24-5H-N2SBDInA XMSA00KS
Top fan XMS500A-24-5H-TFSBRInA XMSA006B XMS500AD-24-5H-TFSBDInA XMSA00L7
Open frame XMS500A-36-5H-N2NBRInA XMSA007V XMS500AD-36-5H-N2NBDInA XMSA00MP
36V 13.8A U chassis XMS500A-36-5H-N2SBRInA XMSA0085 XMS500AD-36-5H-N2SBDInA XMSA00NS
Top fan XMS500A-36-5H-TFSBRInA XMSA009B XMS500AD-36-5H-TFSBDInA XMSA00P8
Open frame XMS500A-48-5H-N2NBRInA XMSA00B6 XMS500AD-48-5H-N2NBDInA XMSA00R7
48V 10.4A U chassis XMS500A-48-5H-N2SBRInA XMSA00C9 XMS500AD-48-5H-N2SBDInA XMSA00S8
Top fan XMS500A-48-5H-TFSBRInA XMSA00DT XMS500AD-48-5H-TFSBDInA XMSA00TR
Standard models include:-
‘5H’ standby (5V / 2A), ‘N2’ fan supply (12V / 0.3A for 12V main output versions, 12V / 0.15A all others - variable supply voltage) [except on Top fan variants], ‘B’ touch cur-
rent (<100μA), ‘In’ remote ON/OFF (inhibit) and ‘A’ AC Fail. Class I standard models include ‘R’ earth leakage (<150μA).
