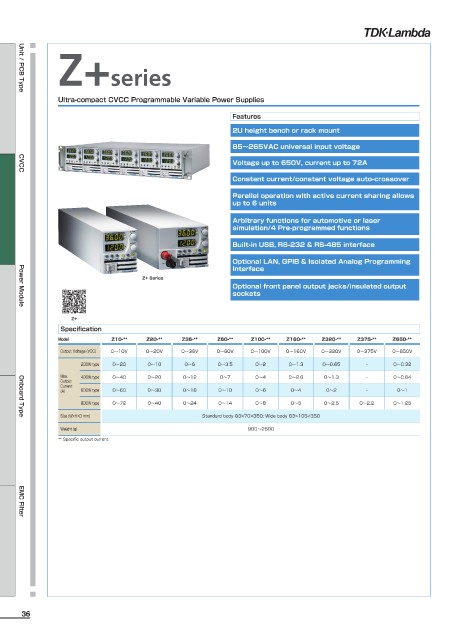

Page 36 - TDK Lambda - Products Selection Guide

Z+series

Unit / PCB Type
Ultra-compact CVCC Programmable Variable Power Supplies

Features
2U height bench or rack mount

85〜265VAC universal input voltage
Voltage up to 650V, current up to 72A

CVCC
Constant current/constant voltage auto-crossover
Parallel operation with active current sharing allows
up to 6 units

Arbitrary functions for automotive or laser
simulation/4 Pre-programmed functions

Built-in USB, RS-232 & RS-485 interface

Optional LAN, GPIB & Isolated Analog Programming
Interface
Z+ Series
Optional front panel output jacks/insulated output
sockets

Power Module
Z+
Specification
Model Z10-** Z20-** Z36-** Z60-** Z100-** Z160-** Z320-** Z375-** Z650-**
Output Voltage (VDC) 0〜10V 0〜20V 0〜36V 0〜60V 0〜100V 0〜160V 0〜320V 0〜375V 0〜650V

200W type 0〜20 0〜10 0〜6 0〜3.5 0〜2 0〜1.3 0〜0.65 – 0〜0.32
Max. 400W type 0〜40 0〜20 0〜12 0〜7 0〜4 0〜2.6 0〜1.3 – 0〜0.64
Output
Current
(A) 600W type 0〜60 0〜30 0〜18 0〜10 0〜6 0〜4 0〜2 – 0〜1
800W type 0〜72 0〜40 0〜24 0〜14 0〜8 0〜5 0〜2.5 0〜2.2 0〜1.25
Size (W×H×D mm) Standard body 83×70×350; Wide body 83×105×350
Onboard Type
Weight (g) 900〜2600
** Specific output current
