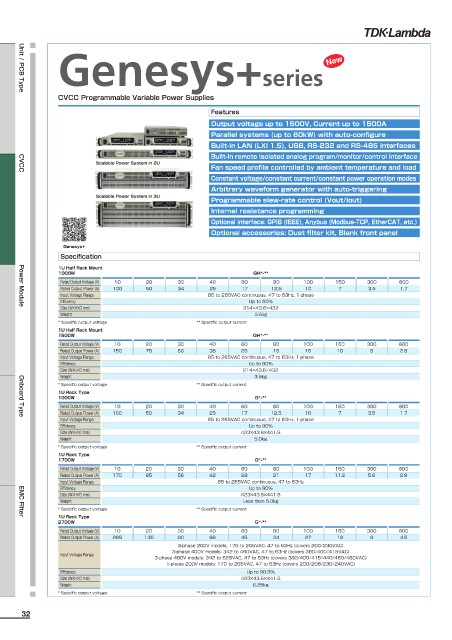

Page 32 - TDK Lambda - Products Selection Guide

New
Genesys+series

Unit / PCB Type
CVCC Programmable Variable Power Supplies
Features
Output voltage up to 1500V, Current up to 1500A
Parallel systems (up to 60kW) with auto-configure
Built-in LAN (LXI 1.5), USB, RS-232 and RS-485 interfaces
Built-in remote isolated analog program/monitor/control interface
Scalable Power System in 2U
Fan speed profile controlled by ambient temperature and load
CVCC
Constant voltage/constant current/constant power operation modes
Arbitrary waveform generator with auto-triggering
Scalable Power System in 3U
Programmable slew-rate control (Vout/Iout)
Internal resistance programming
Optional interface: GPIB (IEEE), Anybus (Modbus-TCP, EtherCAT, etc.)
Optional accessories: Dust filter kit, Blank front panel
Genesys+
Specification
1U Half Rack Mount
1000W GH*-**
Rated Output Voltage (V) 10 20 30 40 60 80 100 150 300 600
Rated Output Power (A) 100 50 34 25 17 12.5 10 7 3.5 1.7
Input Voltage Range 85 to 265VAC continuous, 47 to 63Hz, 1-phase
Efficiency Up to 90%
Size (W×H×D mm) 214×43.6×432
Power Module
Weight 3.5kg
* Specific output voltage ** Specific output current
1U Half Rack Mount
1500W GH*-**
Rated Output Voltage (V) 10 20 30 40 60 80 100 150 300 600
Rated Output Power (A) 150 75 50 38 25 19 15 10 5 2.6
Input Voltage Range 85 to 265VAC continuous, 47 to 63Hz, 1-phase
Efficiency Up to 90%
Size (W×H×D mm) 214×43.6×432
Weight 3.5kg
* Specific output voltage ** Specific output current
1U Rack Type
1000W G*-**
Rated Output Voltage (V) 10 20 30 40 60 80 100 150 300 600
Rated Output Power (A) 100 50 34 25 17 12.5 10 7 3.5 1.7
Input Voltage Range 85 to 265VAC continuous, 47 to 63Hz, 1-phase
Onboard Type
Efficiency Up to 90%
Size (W×H×D mm) 423×43.6×441.5
Weight 5.0kg
* Specific output voltage ** Specific output current
1U Rack Type
1700W G*-**
Rated Output Voltage (V) 10 20 30 40 60 80 100 150 300 600
Rated Output Power (A) 170 85 56 42 28 21 17 11.2 5.6 2.8
Input Voltage Range 85 to 265VAC continuous, 47 to 63Hz
Efficiency Up to 90%
Size (W×H×D mm) 423×43.6×441.5
Weight Less than 5.0kg
* Specific output voltage ** Specific output current
1U Rack Type
EMC Filter
2700W G*-**
Rated Output Voltage (V) 10 20 30 40 60 80 100 150 300 600
Rated Output Power (A) 265 135 90 68 45 34 27 18 9 4.5
3-phase 200V models: 170 to 265VAC, 47 to 63Hz (covers 200/230VAC)
3-phase 400V models: 342 to 460VAC, 47 to 63Hz (covers 380/400/415VAC)
Input Voltage Range
3-phase 480V models: 342 to 528VAC, 47 to 63Hz (covers 380/400/415/440/460/480VAC)
1-phase 200V models: 170 to 265VAC, 47 to 63Hz (covers 200/208/230/240VAC)
Efficiency Up to 90.5%
Size (W×H×D mm) 423×43.6×441.5
Weight 6.25kg
* Specific output voltage ** Specific output current
