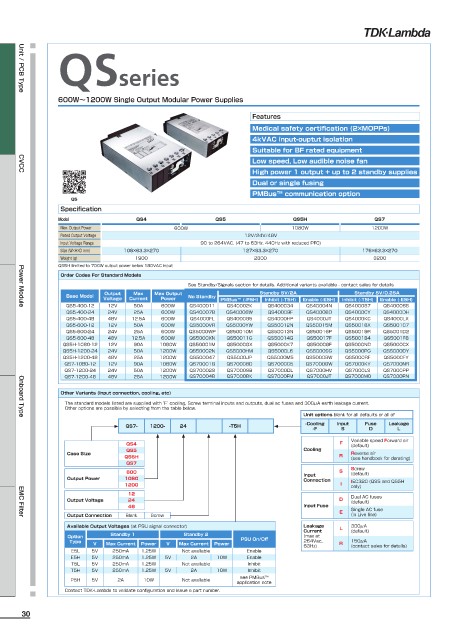

QSseries

Unit / PCB Type
600W〜1200W Single Output Modular Power Supplies

Features
Medical safety certification (2×MOPPs)
4kVAC input-ouptut isolation
Suitable for BF rated equipment
Low speed, Low audible noise fan
High power 1 output + up to 2 standby supplies
CVCC
Dual or single fusing
PMBus™ communication option
QS
Specification
Model QS4 QS5 QS5H QS7
Max. Output Power 600W 1080W 1200W
Rated Output Voltage 12V/24V/48V
Input Voltage Range 90 to 264VAC, (47 to 63Hz, 440Hz with reduced PFC)
Size (W×H×D mm) 108×63.3×270 127×63.3×270 176×63.3×270
Weight (g) 1900 2300 3200
QS5H limited to 700W output power below 180VAC input
Order Codes For Standard Models
See Standby/Signals section for details. Additional variants available - contact sales for details
Standby 5V/0.25A
Max
Output
Base Model Voltage Current Max Output No Standby PMBus™ (-P5H) Standby 5V/2A Enable (-E5H) Inhibit (-T5H) Enable (-E5H)
Power
Inhibit (-T5H)
QS5-400-12 12V 50A 600W QS400011 QS40002K QS400034 QS40004N QS400057 QS40006S
Power Module
QS5-400-24 24V 25A 600W QS40007B QS40008W QS40009F QS4000BD QS4000CY QS4000DH
QS5-400-48 48V 12.5A 600W QS4000FL QS4000G5 QS4000HP QS4000JT QS4000KC QS4000LX
QS5-600-12 12V 50A 600W QS5000VR QS5000YW QS50012N QS50015M QS50018X QS5001C7
QS5-600-24 24V 25A 600W QS5000WP QS50010M QS50013N QS50016P QS50019R QS5001D2
QS5-600-48 48V 12.5A 600W QS5000XN QS50011G QS50014G QS50017F QS5001B4 QS5001F8
QS5H-1080-12 12V 90A 1080W QS50001M QS5000GX QS5000K7 QS50008F QS5000ND QS5000CX
QS5H-1200-24 24V 50A 1200W QS50002N QS5000HM QS5000L6 QS50009G QS5000PG QS5000DY
QS5H-1200-48 48V 25A 1200W QS500047 QS5000JP QS5000M5 QS5000BW QS5000RF QS5000FY
QS7-1080-12 12V 90A 1080W QS70001G QS70008D QS7000C5 QS7000GW QS7000KY QS7000NR
QS7-1200-24 24V 50A 1200W QS700029 QS70009B QS7000DL QS7000HV QS7000LS QS7000PP
QS7-1200-48 48V 25A 1200W QS70004B QS7000BK QS7000FM QS7000JT QS7000M0 QS7000RN

Other Variants (Input connection, cooling, etc)
The standard models listed are supplied with ‘F’ cooling, Screw terminal inputs and outputs, dual ac fuses and 300μA earth leakage current.
Other options are possible by selecting from the table below.
Unit options blank for all defaults or all of
Onboard Type
QS7- 1200- 24 -T5H ▲ -Cooling Input Fuse Leakage
D
L
-F
S
▲
▲ ▲ ▲ ▲
QS4 F Variable speed Forward air
(default)
QS5 Cooling
Case Size Reverse air
QS5H R (see handbook for derating)
QS7
600 Input S Screw
(default)
Output Power 1080 Connection IEC320 (QS5 and QS5H
1200 I only)
12
Output Voltage 24 D Dual AC fuses
(default)
48 Input Fuse
E Single AC fuse
Output Connection Blank Screw (in Live line)
EMC Filter
Available Output Voltages (at PSU signal connector) Leakage 300μA
Current L (default)
Option Standby 1 Standby 2 PSU On/Off (max at
Type V Max Current Power V Max Current Power 264Vac, R 150μA
63Hz)
(contact sales for details)
E5L 5V 250mA 1.25W Not available Enable
E5H 5V 250mA 1.25W 5V 2A 10W Enable
T5L 5V 250mA 1.25W Not available Inhibit
T5H 5V 250mA 1.25W 5V 2A 10W Inhibit
see PMBus™
P5H 5V 2A 10W Not available application note
Contact TDK-Lambda to validate configuration and issue a part number.
