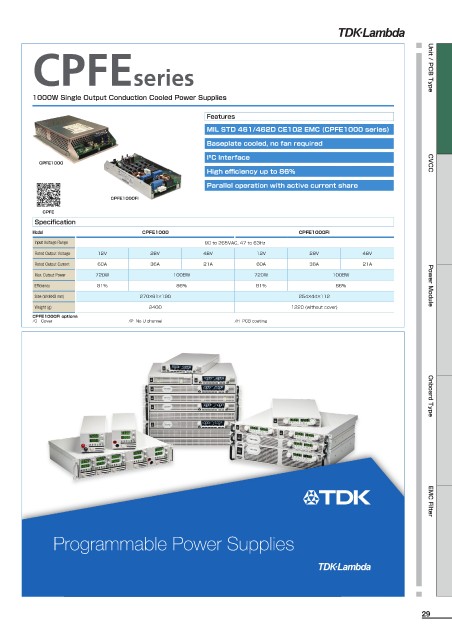

CPFEseries Unit / PCB Type

1000W Single Output Conduction Cooled Power Supplies

Features
MIL STD 461/462D CE102 EMC (CPFE1000 series)
Baseplate cooled, no fan required
I²C Interface
CPFE1000 CVCC
High efficiency up to 86%
Parallel operation with active current share
CPFE1000FI

CPFE
Specification
Model CPFE1000 CPFE1000FI
Input Voltage Range 90 to 265VAC, 47 to 63Hz
Rated Output Voltage 12V 28V 48V 12V 28V 48V
Rated Output Current 60A 36A 21A 60A 36A 21A
Max. Output Power 720W 1008W 720W 1008W
Efficiency 81% 86% 81% 86% Power Module
Size (W×H×D mm) 270×61×190 254×44×112
Weight (g) 2400 1220 (without cover)
CPFE1000FI options
/C Cover /P No U channel /H PCB coating Onboard Type

Programmable Power Supplies EMC Filter
