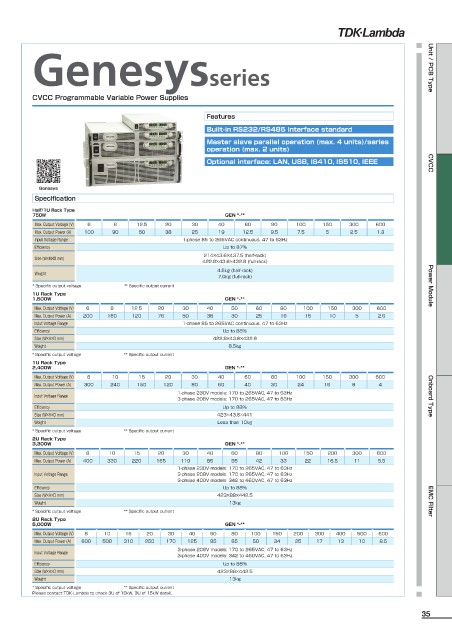

Page 35 - TDK Lambda - Products Selection Guide

Genesysseries Unit / PCB Type

CVCC Programmable Variable Power Supplies

Features
Built-in RS232/RS485 interface standard
Master slave parallel operation (max. 4 units)/series
operation (max. 2 units)
Optional interface: LAN, USB, IS410, IS510, IEEE CVCC

Genesys
Specification
Half/1U Rack Type
750W GEN *-**
Max. Output Voltage (V) 6 8 12.5 20 30 40 60 80 100 150 300 600
Max. Output Power (A) 100 90 60 38 25 19 12.5 9.5 7.5 5 2.5 1.3
Input Voltage Range 1-phase 85 to 265VAC continuous, 47 to 63Hz
Efficiency Up to 87%
214×43.6×437.5 (half-rack)
Size (W×H×D mm)
422.8×43.6×432.8 (full-rack)
4.5kg (half-rack)
Weight
7.0kg (full-rack)
* Specific output voltage ** Specific output current Power Module
1U Rack Type
1,500W GEN *-**
Max. Output Voltage (V) 6 8 12.5 20 30 40 50 60 80 100 150 300 600
Max. Output Power (A) 200 180 120 76 50 38 30 25 19 15 10 5 2.6
Input Voltage Range 1-phase 85 to 265VAC continuous, 47 to 63Hz
Efficiency Up to 88%
Size (W×H×D mm) 422.8×43.6×432.8
Weight 8.5kg
* Specific output voltage ** Specific output current
1U Rack Type
2,400W GEN *-**
Max. Output Voltage (V) 8 10 16 20 30 40 60 80 100 150 300 600
Max. Output Power (A) 300 240 150 120 80 60 40 30 24 16 8 4
1-phase 230V models: 170 to 265VAC, 47 to 63Hz
Input Voltage Range Onboard Type
3-phase 208V models: 170 to 265VAC, 47 to 63Hz
Efficiency Up to 88%
Size (W×H×D mm) 423×43.6×441
Weight Less than 10kg
* Specific output voltage ** Specific output current
2U Rack Type
3,300W GEN *-**
Max. Output Voltage (V) 8 10 15 20 30 40 60 80 100 150 200 300 600
Max. Output Power (A) 400 330 220 165 110 85 55 42 33 22 16.5 11 5.5
1-phase 230V models: 170 to 265VAC, 47 to 63Hz
Input Voltage Range 3-phase 208V models: 170 to 265VAC, 47 to 63Hz
3-phase 400V models: 342 to 460VAC, 47 to 63Hz
Efficiency Up to 88%
Size (W×H×D mm) 423×88×442.5
Weight 13kg EMC Filter
* Specific output voltage ** Specific output current
2U Rack Type
5,000W GEN *-**
Max. Output Voltage (V) 8 10 16 20 30 40 60 80 100 150 200 300 400 500 600
Max. Output Power (A) 600 500 310 250 170 125 85 65 50 34 25 17 13 10 8.5
3-phase 208V models: 170 to 265VAC, 47 to 63Hz
Input Voltage Range
3-phase 400V models: 342 to 460VAC, 47 to 63Hz
Efficiency Up to 88%
Size (W×H×D mm) 423×88×442.5
Weight 13kg
* Specific output voltage ** Specific output current
Please contact TDK-Lambda to check 3U of 10kW, 3U of 15kW detail.
