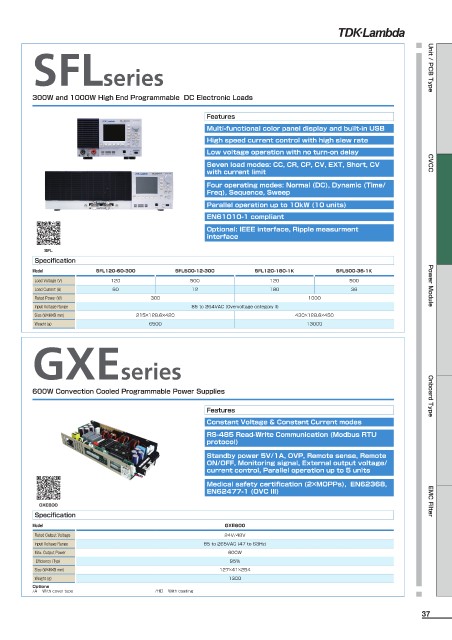

SFLseries Unit / PCB Type

300W and 1000W High End Programmable DC Electronic Loads

Features
Multi-functional color panel display and built-in USB
High speed current control with high slew rate
Low voltage operation with no turn-on delay
Seven load modes: CC, CR, CP, CV, EXT, Short, CV CVCC
with current limit
Four operating modes: Normal (DC), Dynamic (Time/
Freq), Sequence, Sweep
Parallel operation up to 10kW (10 units)
EN61010-1 compliant
Optional: IEEE interface, Ripple measurment
interface

SFL
Specification
Model SFL120-60-300 SFL500-12-300 SFL120-180-1K SFL500-36-1K
Load Voltage (V) 120 500 120 500
Load Current (A) 60 12 180 36 Power Module
Rated Power (W) 300 1000
Input Voltage Range 85 to 264VAC (Overvoltage category II)
Size (W×H×D mm) 215×128.6×420 430×128.6×450
Weight (g) 6500 13000

GXEseries

600W Convection Cooled Programmable Power Supplies Onboard Type

Features
Constant Voltage & Constant Current modes
RS-485 Read-Write Communication (Modbus RTU
protocol)
Standby power 5V/1A, OVP, Remote sense, Remote
ON/OFF, Monitoring signal, External output voltage/
current control, Parallel operation up to 5 units
Medical safety certification (2×MOPPs), EN62368,
EN62477-1 (OVC III)

GXE600 EMC Filter
Specification
Model GXE600
Rated Output Voltage 24V/48V
Input Voltage Range 85 to 265VAC (47 to 63Hz)
Max. Output Power 600W
Efficiency (Typ) 95%
Size (W×H×D mm) 127×41×254
Weight (g) 1300
Options
/A With cover type /HD With coating
