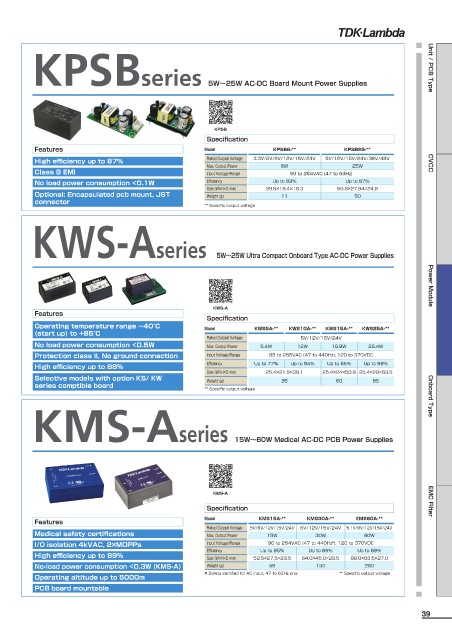

Page 39 - TDK Lambda - Products Selection Guide

KPSBseries 5W〜25W AC-DC Board Mount Power Supplies Unit / PCB Type

KPSB
Specification
Features Model KPSB6-** KPSB25-**
High efficiency up to 87% Rated Output Voltage 3.3V/5V/9V/12V/15V/24V 5V/12V/15V/24V/36V/48V
Max. Output Power 6W 25W CVCC
Class B EMI Input Voltage Range 90 to 264VAC (47 to 63Hz)
No load power consumption <0.1W Efficiency Up to 83% Up to 87%
Size (W×H×D mm) 39.5×19.4×18.3 50.8×27.94×24.9
Optional: Encapsulated pcb mount, JST Weight (g) 11 50
connector ** Specific output voltage

KWS-Aseries 5W〜25W Ultra Compact Onboard Type AC-DC Power Supplies

KWS-A Power Module
Features
Specification
Operating temperature range －40°C Model KWS5A-** KWS10A-** KWS15A-** KWS25A-**
(start up) to +85°C
Rated Output Voltage 5V/12V/15V/24V
No load power consumption <0.5W Max. Output Power 5.4W 12W 16.8W 26.4W
Protection class II, No ground connection Input Voltage Range 85 to 265VAC (47 to 440Hz), 120 to 370VDC
High efficiency up to 88% Efficiency Up to 77% Up to 84% Up to 85% Up to 88%
Size (W×H×D mm) 25.4×21.5×38.1 25.4×24×50.8 25.4×29×63.5
Selective models with option KS/ KW Weight (g) 35 60 85
series comptible board
** Specific output voltage Onboard Type

KMS-Aseries 15W〜60W Medical AC-DC PCB Power Supplies

KMS-A
Specification EMC Filter
Features Model KMS15A-** KMS30A-** KMS60A-**
Rated Output Voltage 5V/9V/12V/15V/24V 5V/12V/15V/24V 5.1V/9V/12V/15V/24V
Medical safety certifications Max. Output Power 15W 30W 60W
I/O isolation 4kVAC, 2×MOPPs Input Voltage Range 90 to 264VAC (47 to 440Hz # ), 120 to 370VDC
Efficiency Up to 85% Up to 89% Up to 88%
High efficiency up to 89% Size (W×H×D mm) 52.5×27.5×23.5 64.0×45.0×23.5 89.0×63.5×27.0
No-load power consumption <0.3W (KMS-A) Weight (g) 59 130 280
Operating altitude up to 5000m # Safety certified for AC input, 47 to 63Hz only ** Specific output voltage
PCB board mountable
