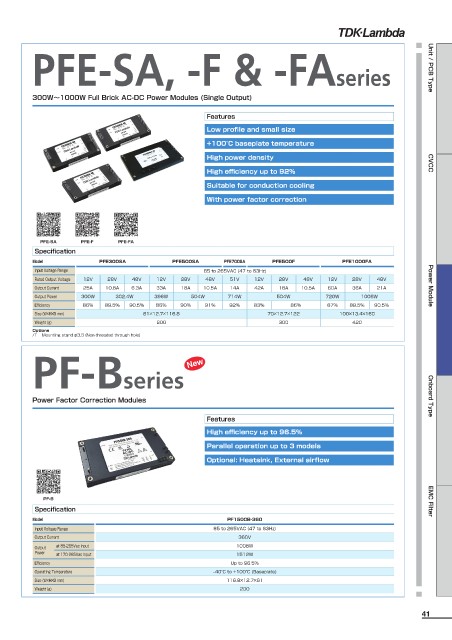

Page 41 - TDK Lambda - Products Selection Guide

PFE-SA, -F & -FAseries Unit / PCB Type

300W〜1000W Full Brick AC-DC Power Modules (Single Output)

Features
Low profile and small size
+100°C baseplate temperature
High power density

High efficiency up to 92% CVCC
Suitable for conduction cooling
With power factor correction

PFE-SA PFE-F PFE-FA
Specification
Model PFE300SA PFE500SA PFE700SA PFE500F PFE1000FA
Input Voltage Range 85 to 265VAC (47 to 63Hz)
Rated Output Voltage 12V 28V 48V 12V 28V 48V 51V 12V 28V 48V 12V 28V 48V
Output Current 25A 10.8A 6.3A 33A 18A 10.5A 14A 42A 18A 10.5A 60A 36A 21A Power Module
Output Power 300W 302.4W 396W 504W 714W 504W 720W 1008W
Efficiency 86% 89.5% 90.5% 86% 90% 91% 92% 83% 86% 87% 89.5% 90.5%
Size (W×H×D mm) 61×12.7×116.8 70×12.7×122 100×13.4×160
Weight (g) 200 300 420
Options
/T Mounting stand φ3.3 (Non-threaded through hole)

New
PF-Bseries

Power Factor Correction Modules Onboard Type

Features

High efficiency up to 96.5%
Parallel operation up to 3 models
Optional: Heatsink, External airflow

PF-B EMC Filter
Specification
Model PF1500B-360
Input Voltage Range 85 to 265VAC (47 to 63Hz)
Output Current 360V
Output at 85-265Vac Input 1008W
Power at 170-265Vac Input 1512W
Efficiency Up to 96.5%
Operating Temperature –40°C to +100°C (Baseplate)
Size (W×H×D mm) 116.8×12.7×61
Weight (g) 200
