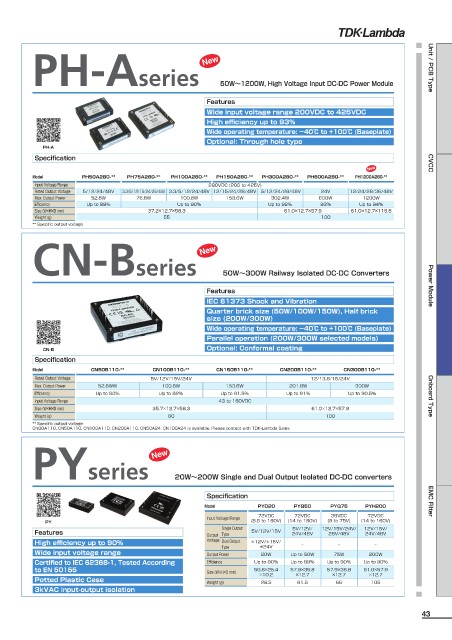

PH-Aseries 50W〜1200W, High Voltage Input DC-DC Power Module Unit / PCB Type

Features
Wide input voltage range 200VDC to 425VDC
High efficiency up to 93%
Wide operating temperature: －40℃ to +100℃ (Baseplate)
Optional: Through hole type
PH-A
Specification
New CVCC
Model PH50A280-** PH75A280-** PH100A280-** PH150A280-** PH300A280-** PH600A280-** PH1200A280-**
Input Voltage Range 280VDC (200 to 425V)
Rated Output Voltage 5/12/24/48V 3.3/5/12/15/24/28/48V 3.3/5/12/24/48V 12/15/24/28/48V 5/12/24/28/48V 24V 12/24/28/36/48V
Max. Output Power 52.8W 76.8W 100.8W 153.6W 302.4W 600W 1200W
Efficiency Up to 89% Up to 90% Up to 92% 93% Up to 94%
Size (W×H×D mm) 37.2×12.7×58.3 61.0×12.7×57.9 61.0×12.7×116.8
Weight (g) 55 100
** Specific output voltage

New

CN-Bseries 50W〜300W Railway Isolated DC-DC Converters

Features Power Module
IEC 61373 Shock and Vibration
Quarter brick size (50W/100W/150W), Half brick
size (200W/300W)
Wide operating temperature: －40℃ to +100℃ (Baseplate)
Parallel operation (200W/300W selected models)
CN-B Optional: Conformal coating
Specification
Model CN50B110-** CN100B110-** CN150B110-** CN200B110-** CN300B110-**
Rated Output Voltage 5V/12V/15V/24V 12/13.8/15/24V
Max. Output Power 52.8WW 100.8W 153.6W 201.6W 300W
Efficiency Up to 90% Up to 92% Up to 91.5% Up to 91% Up to 90.5% Onboard Type
Input Voltage Range 43 to 160VDC
Size (W×H×D mm) 35.7×12.7×58.3 61.0×12.7×57.9
Weight (g) 60 100
** Specific output voltage
CN30A110, CN50A110, CN100A110, CN200A110, CN50A24, CN100A24 is available. Please contact with TDK-Lambda Sales.

New

PYseries 20W〜200W Single and Dual Output Isolated DC-DC converters

Specification
Model PYD20 PYQ50 PYQ75 PYH200 EMC Filter
Input Voltage Range 72VDC 72VDC 36VDC 72VDC
PY (8.5 to 160V) (14 to 160V) (9 to 75V) (14 to 160V)
Single Output 5V/12V/ 12V/15V/24V/ 12V/15V/
Features Output Type 5V/12V/15V 24V/48V 28V/48V 24V/48V
High efficiency up to 90% Voltage Dual Output ±12V/±15V/ – – –
±24V
Type
Wide input voltage range Output Power 20W Up to 50W 75W 200W
Certified to IEC 62368-1, Tested According Efficiency Up to 90% Up to 89% Up to 90% Up to 90%
to EN 50155 Size (W×H×D mm) 50.8×25.4 57.9×36.8 57.9×36.8 61.0×57.9
Potted Plastic Case Weight (g) ×10.2 ×12.7 ×12.7 ×12.7
28.5
61.5
66
105
3kVAC input-output isolation
43
