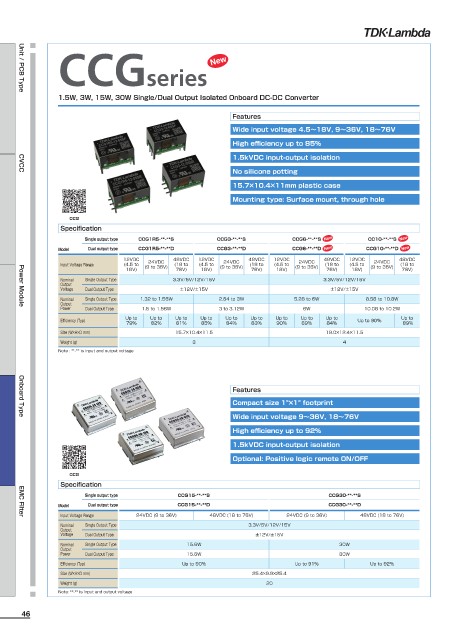

Page 46 - TDK Lambda - Products Selection Guide

New
CCGseries

Unit / PCB Type
1.5W, 3W, 15W, 30W Single/Dual Output Isolated Onboard DC-DC Converter

Features
Wide input voltage 4.5～18V, 9～36V, 18～76V
High efficiency up to 85%
1.5kVDC input-output isolation

No silicone potting
CVCC
15.7×10.4×11mm plastic case
Mounting type: Surface mount, through hole

CCG
Specification
Single output type CCG1R5-**-**S CCG3-**-**S CCG6-**-**S New CC10-**-**S New
Model Dual output type CCG1R5-**-**D CCG3-**-**D CCG6-**-**D New CCG10-**-**D New
12VDC 24VDC 48VDC 12VDC 24VDC 48VDC 12VDC 24VDC 48VDC 12VDC 24VDC 48VDC
Input Voltage Range (4.5 to (9 to 36V) (18 to (4.5 to (9 to 36V) (18 to (4.5 to (9 to 36V) (18 to (4.5 to (9 to 36V) (18 to
18V) 76V) 18V) 76V) 18V) 76V) 18V) 76V)
Nominal Single Output Type 3.3V/5V/12V/15V 3.3V/5V/12V/15V
Output
Voltage Dual Output Type ±12V/±15V ±12V/±15V
Nominal Single Output Type 1.32 to 1.56W 2.64 to 3W 5.28 to 6W 8.58 to 10.8W
Output
Power Dual Output Type 1.5 to 1.56W 3 to 3.12W 6W 10.08 to 10.2W
Power Module
Efficiency (Typ) Up to Up to Up to Up to Up to Up to Up to Up to Up to Up to 90% Up to
84%
83%
89%
84%
89%
81%
85%
90%
79%
82%
Size (W×H×D mm) 15.7×10.4×11.5 19.0×12.4×11.5
Weight (g) 3 4
Note : **-** is input and output voltage
Features
Compact size 1"×1" footprint
Wide input voltage 9～36V, 18～76V
Onboard Type
High efficiency up to 92%
1.5kVDC input-output isolation
Optional: Positive logic remote ON/OFF

CCG
Specification
Single output type CCG15-**-**S CCG30-**-**S
Model Dual output type CCG15-**-**D CCG30-**-**D
Input Voltage Range 24VDC (9 to 36V) 48VDC (18 to 76V) 24VDC (9 to 36V) 48VDC (18 to 76V)
EMC Filter
Nominal Single Output Type 3.3V/5V/12V/15V
Output
Voltage Dual Output Type ±12V/±15V
Nominal Single Output Type 15.6W 30W
Output
Power Dual Output Type 15.6W 30W
Efficiency (Typ) Up to 90% Up to 91% Up to 92%
Size (W×H×D mm) 25.4×9.9×25.4
Weight (g) 20
Note: **-** is input and output voltage
