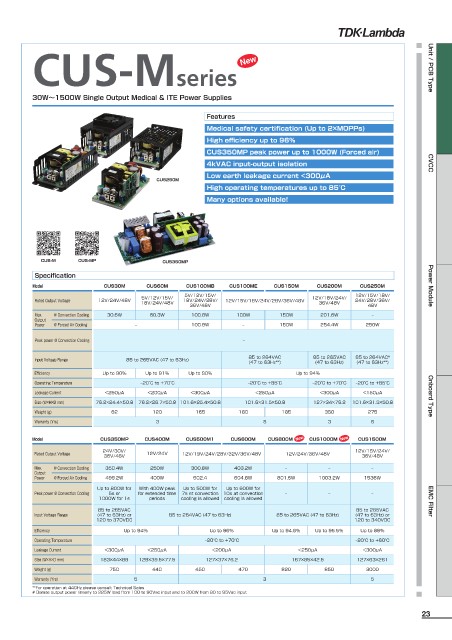

Page 23 - TDK Lambda - Products Selection Guide

New
CUS-Mseries Unit / PCB Type

30W〜1500W Single Output Medical & ITE Power Supplies

Features
Medical safety certification (Up to 2×MOPPs)
High efficiency up to 96%
CUS350MP peak power up to 1000W (Forced air)
4kVAC input-output isolation CVCC
Low earth leakage current <300μA
CUS250M
High operating temperatures up to 85°C
Many options available!

CUS-M CUS-MP CUS350MP
Specification
Model CUS30M CUS60M CUS100MB CUS100ME CUS150M CUS200M CUS250M Power Module
5V/12V/15V/ 5V/12V/15V/ 12V/18V/24V/ 12V/15V/18V/
Rated Output Voltage 12V/24V/48V 18V/24V/48V 18V/24V/28V/ 12V/15V/18V/24V/28V/36V/48V 36V/48V 24V/28V/36V/
48V
36V/48V
Max. @ Convection Cooling 30.6W 60.3W 100.8W 100W 150W 201.6W –
Output
Power @ Forced Air Cooling – 100.8W – 150W 254.4W 250W
Peak power @ Convection Cooling –

Input Voltage Range 85 to 265VAC (47 to 63Hz) 85 to 264VAC 85 to 265VAC 85 to 264VAC #
(47 to 63Hz)
(47 to 63Hz**)
(47 to 63Hz**)
Efficiency Up to 90% Up to 91% Up to 90% Up to 94%
Operating Temperature –20°C to +70°C –20°C to +85°C –20°C to +70°C –20°C to +85°C
Leakage Current <250μA <200μA <300μA <250μA <300μA <150μA Onboard Type
Size (W×H×D mm) 76.2×24.4×50.8 76.2×26.7×50.8 101.6×25.4×50.8 101.6×31.5×50.8 127×34×76.2 101.6×31.5×50.8
Weight (g) 62 120 165 180 185 350 275
Warranty (Yrs) 3 5 3 5

Model CUS350MP CUS400M CUS500M1 CUS600M CUS800M New CUS1000M New CUS1500M
24V/30V/ 12V/15V/24V/
Rated Output Voltage 36V/48V 12V/24V 12V/19V/24V/28V/32V/36V/48V 12V/24V/36V/48V 36V/48V
Max. @ Convection Cooling 350.4W 250W 300.8W 403.2W – – –
Output
Power @ Forced Air Cooling 499.2W 400W 502.4 604.8W 801.6W 1003.2W 1536W
Up to 800W for With 400W peak Up to 500W for Up to 600W for
Peak power @ Convection Cooling 5s or for extended time 7s at convection 10s at convection – – –
1000W for 1s periods cooling is allowed cooling is allowed EMC Filter
85 to 265VAC 85 to 265VAC
Input Voltage Range (47 to 63Hz) or 85 to 264VAC (47 to 63Hz) 85 to 265VAC (47 to 63Hz) (47 to 63Hz) or
120 to 370VDC 120 to 340VDC
Efficiency Up to 94% Up to 96% Up to 94.6% Up to 95.5% Up to 88%
Operating Temperature –20°C to +70°C –20°C to +60°C
Leakage Current <300μA <250μA <200μA <250μA <300μA
Size (W×H×D mm) 183×44×88 128×39.5×77.5 127×37×76.2 167×85×42.5 127×63×261
Weight (g) 750 440 450 470 820 850 3000
Warranty (Yrs) 5 3 5
**For operation at 440Hz please consult Technical Sales
# Derate output power linearly to 225W load from 100 to 90Vac input and to 200W from 90 to 85Vac input
