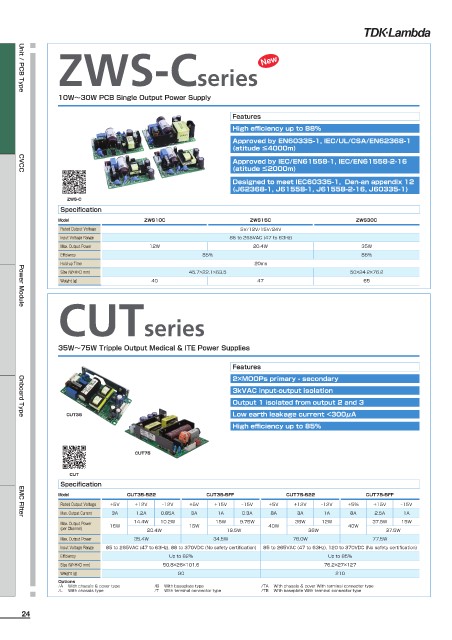

Page 24 - TDK Lambda - Products Selection Guide

New
ZWS-Cseries

Unit / PCB Type
10W〜30W PCB Single Output Power Supply

Features
High efficiency up to 88%
Approved by EN60335-1, IEC/UL/CSA/EN62368-1
(atitude ≤4000m)
Approved by IEC/EN61558-1, IEC/EN61558-2-16
(atitude ≤2000m)
CVCC
Designed to meet IEC60335-1, Den-an appendix 12
(J62368-1, J61558-1, J61558-2-16, J60335-1)
ZWS-C
Specification
Model ZWS10C ZWS15C ZWS30C
Rated Output Voltage 5V/12V/15V/24V
Input Voltage Range 85 to 265VAC (47 to 63Hz)
Max. Output Power 12W 20.4W 35W
Efficiency 85% 88%
Hold-up Time 20ms
Size (W×H×D mm) 45.7×22.1×63.5 50×24.2×76.2
Weight (g) 40 47 65

Power Module
CUTseries

35W〜75W Tripple Output Medical & ITE Power Supplies

Features
2×MOOPs primary - secondary
3kVAC input-output isolation
Output 1 isolated from output 2 and 3
CUT35 Low earth leakage current <300μA
Onboard Type
High efficiency up to 85%

CUT75

CUT
Specification
Model CUT35-522 CUT35-5FF CUT75-522 CUT75-5FF
Rated Output Voltage +5V +12V –12V +5V +15V –15V +5V +12V –12V +5% +15V –15V
Max. Output Current 3A 1.2A 0.85A 3A 1A 0.3A 8A 3A 1A 8A 2.5A 1A
EMC Filter
Max. Output Power 15W 14.4W 10.2W 15W 15W 9.75W 40W 36W 12W 40W 37.5W 15W
(per Channel) 20.4W 19.5W 36W 37.5W
Max. Output Power 35.4W 34.5W 76.0W 77.5W
Input Voltage Range 85 to 265VAC (47 to 63Hz), 88 to 370VDC (No safety certification) 85 to 265VAC (47 to 63Hz), 120 to 370VDC (No safety certification)
Efficiency Up to 82% Up to 85%
Size (W×H×D mm) 50.8×26×101.6 76.2×27×127
Weight (g) 90 210
Options
/A With chassis & cover type /B With baseplate type /TA With chassis & cover With terminal connector type
/L With chassis type /T With terminal connector type /TB With baseplate With terminal connector type
