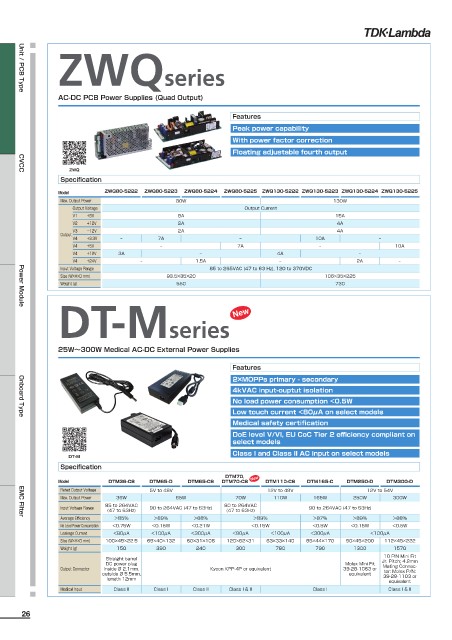

Page 26 - TDK Lambda - Products Selection Guide

ZWQseries

Unit / PCB Type
AC-DC PCB Power Supplies (Quad Output)

Features
Peak power capability
With power factor correction
Floating adjustable fourth output

ZWQ
CVCC
Specification
Model ZWQ80-5222 ZWQ80-5223 ZWQ80-5224 ZWQ80-5225 ZWQ130-5222 ZWQ130-5223 ZWQ130-5224 ZWQ130-5225
Max. Output Power 80W 130W
Output Voltage Output Current
V1 +5V 8A 15A
V2 +12V 2A 4A
V3 －12V 2A 4A
Output
V4 +3.3V – 7A – 10A –
V4 +5V – 7A – 10A
V4 +12V 3A – 4A –
V4 +24V – 1.5A – 2A –
Input Voltage Range 85 to 265VAC (47 to 63 Hz), 120 to 370VDC
Size (W×H×D mm) 93.5×35×20 106×35×225
Weight (g) 550 730

Power Module
New
DT-Mseries

25W〜300W Medical AC-DC External Power Supplies

Features
2×MOPPs primary - secondary
4kVAC input-ouptut isolation
No load power consumption <0.5W
Low touch current <80μA on select models
Onboard Type
Medical safety certification
DoE level V/VI, EU CoC Tier 2 efficiency compliant on
select models
Class I and Class II AC input on select models
DT-M
Specification
DTM70,
Model DTM36-C8 DTM65-D DTM65-C8 DTM70-C8 New DTM110-C8 DTM165-C DTM250-D DTM300-D
Rated Output Voltage 5V to 48V 12V to 48V 12V to 54V
Max. Output Power 36W 65W 70W 110W 165W 250W 300W
Input Voltage Range 85 to 264VAC 90 to 264VAC (47 to 63Hz) 80 to 264VAC 90 to 264VAC (47 to 63Hz)
(47 to 63Hz) (47 to 63Hz)
Average Efficiency >85% >89% >88% >89% >87% >89% >88%
EMC Filter
No Load Power Consumption <0.75W <0.15W <0.21W <0.15W <0.5W <0.15W <0.5W
Leakage Current <80μA <100μA <300μA <90μA <100μA <300μA <100μA
Size (W×H×D mm) 100×45×22.5 69×40×132 60×31×106 120×52×31 63×33×140 85×44×170 90×45×200 112×45×222
Weight (g) 150 390 240 300 780 790 1300 1570
10 PIN Mini Fit
Straight barrel
DC power plug Molex Mini Fit Jr. Pitch; 4.2mm
Mating Connec-
Output Connector inside Ø 2.1mm. Kycon KPP-4P or equivalent 39-28-1063 or tor: Molex P/N:
outside Ø 5.5mm, equivalent 39-28-1103 or
length 12mm equivalent
Medical Input Class II Class I Class II Class I & II Class I Class I & II
