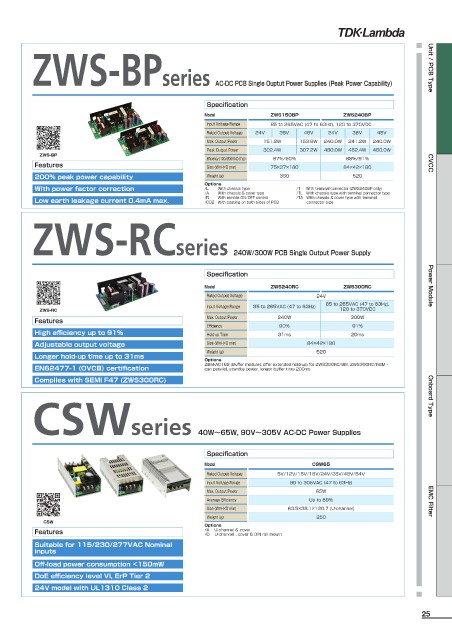

Page 25 - TDK Lambda - Products Selection Guide

ZWS-BPseries AC-DC PCB Single Ouptut Power Supplies (Peak Power Capability) Unit / PCB Type

Specification
Model ZWS150BP ZWS240BP
Input Voltage Range 85 to 265VAC (47 to 63Hz), 120 to 370VDC
Rated Output Voltage 24V 36V 48V 24V 36V 48V
Max. Output Power 151.2W 153.6W 240.0W 241.2W 240.0W
Peak Output Power 302.4W 307.2W 480.0W 482.4W 480.0W
ZWS-BP
Efficiency (100/200VAC) (Typ) 87%/90% 88%/91%
Features Size (W×H×D mm) 75×37×160 84×42×180 CVCC
200% peak power capability Weight (g) 360 520
Options
With power factor correction /L With chassis type /T With terminal connector (ZWS240BP only)
/A With chassis & cover type /TL With chassis type with terminal connector type
Low earth leakage current 0.4mA max. /R With remote ON/OFF control /TA With chassis & cover type with terminal
/CO2 With coating on both sides of PCB
connector type

ZWS-RCseries 240W/300W PCB Single Output Power Supply

Specification
Model ZWS240RC ZWS300RC Power Module
Rated Output Voltage 24V
Input Voltage Range 85 to 265VAC (47 to 63Hz) 85 to 265VAC (47 to 63Hz),
ZWS-RC 120 to 370VDC
Features Max. Output Power 240W 300W
Efficiency 90% 91%
High efficiency up to 91% Hold-up Time 31ms 20ms
Adjustable output voltage Size (W×H×D mm) 84×42×180
Weight (g) 520
Longer hold-up time up to 31ms
Options
EN62477-1 (OVCⅢ) certification ZBM-AC162 (Buffer modules offer extended hold-up) for ZWS300RC/BM, ZWS300RC/RBM -
can parallel, standby power, longer buffer time 200ms
Complies with SEMI F47 (ZWS300RC) Onboard Type

CSWseries 40W〜65W, 90V〜305V AC-DC Power Supplies

Specification
Model CSW65
Rated Output Voltage 5V/12V/15V/18V/24V/28V/48V/54V
Input Voltage Range 90 to 305VAC (47 to 63Hz)
Max. Output Power 65W
Average Efficiency Up to 89% EMC Filter
Size (W×H×D mm) 63.5×38.1×120.7 (U-channel)
Weight (g) 250
CSW Options
Features /A U-channel & cover
/D U-channel , cover & DIN rail mount
Suitable for 115/230/277VAC Nominal
inputs
Off-load power consumption <150mW
DoE efficiency level VI, ErP Tier 2
24V model with UL1310 Class 2
